Filters

Overview

Filtration is the process of separating suspended particles from a fluid (liquid or gas) by passing it through a permeable medium. In engineering systems, filters, screens, and strainers are essential components for protecting sensitive equipment (pumps, compressors, valves, nozzles) from debris, preventing erosion, and ensuring product purity in industrial processes. Filter selection involves balancing particle capture efficiency against flow resistance and pressure drop.

The primary engineering concern with filters is the pressure drop (\Delta P) they induce. As fluid passes through the media, mechanical energy is lost to viscous friction and turbulence, which must be compensated by pumps or fans. This pressure loss is typically characterized by a dimensionless loss coefficient (K) that relates the pressure drop to the dynamic pressure:

\Delta P = K \cdot \frac{1}{2} \rho v^2

where \rho is the fluid density and v is the approach velocity. The loss coefficient depends on filter geometry (open area ratio, wire/bar thickness, hole diameter) and edge sharpness. These tools compute K using empirically-validated correlations from fluids and fluid mechanics handbooks.

Implementation: All pressure drop calculations leverage the fluids library, which implements industry-standard correlations from Idelchik, Crane, and other authoritative sources. These correlations apply to fully turbulent flow (Re > 10^4) through clean, unobstructed filter elements.

Figure 1 illustrates how the loss coefficient varies with open area ratio and edge geometry for common filter types.

Filter Geometries: Filters are categorized by their structural pattern and edge geometry. Grills and perforated plates consist of circular holes drilled or punched through a flat plate—common in HVAC intakes, particle separators, and process vessel screens. Wire screens and bar screens are woven or welded grid patterns used for coarse particle removal in wastewater, cooling water, and pulp processing. Mesh screens (woven wire cloth) provide finer filtration for hydraulic systems and air filtration.

Edge Geometry Effects: The sharpness of the filter element edges significantly impacts pressure drop. Square-edged filters (SQ_EDGE_GRILL, SQ_EDGE_SCREEN) have higher loss coefficients due to flow separation and recirculation at sharp corners. Round-edged filters (RND_EDGE_GRILL, RND_EDGE_SCREEN, RND_EDGE_MESH) reduce pressure drop by 20-40% through streamlined entry, minimizing separation. Chamfering or radiusing edges during manufacturing is a common design optimization.

Open Area Ratio: All correlations are functions of the open area ratio (or solidity), defined as the fraction of the filter area that is open to flow. Higher open area ratios (lower solidity) reduce pressure drop but may compromise structural strength or particle capture. Typical values range from 0.3 to 0.8 depending on application requirements. Use the RND_EDGE_GRILL or SQ_EDGE_GRILL tools for perforated plates, the screen tools for bar/wire grids based on edge geometry.

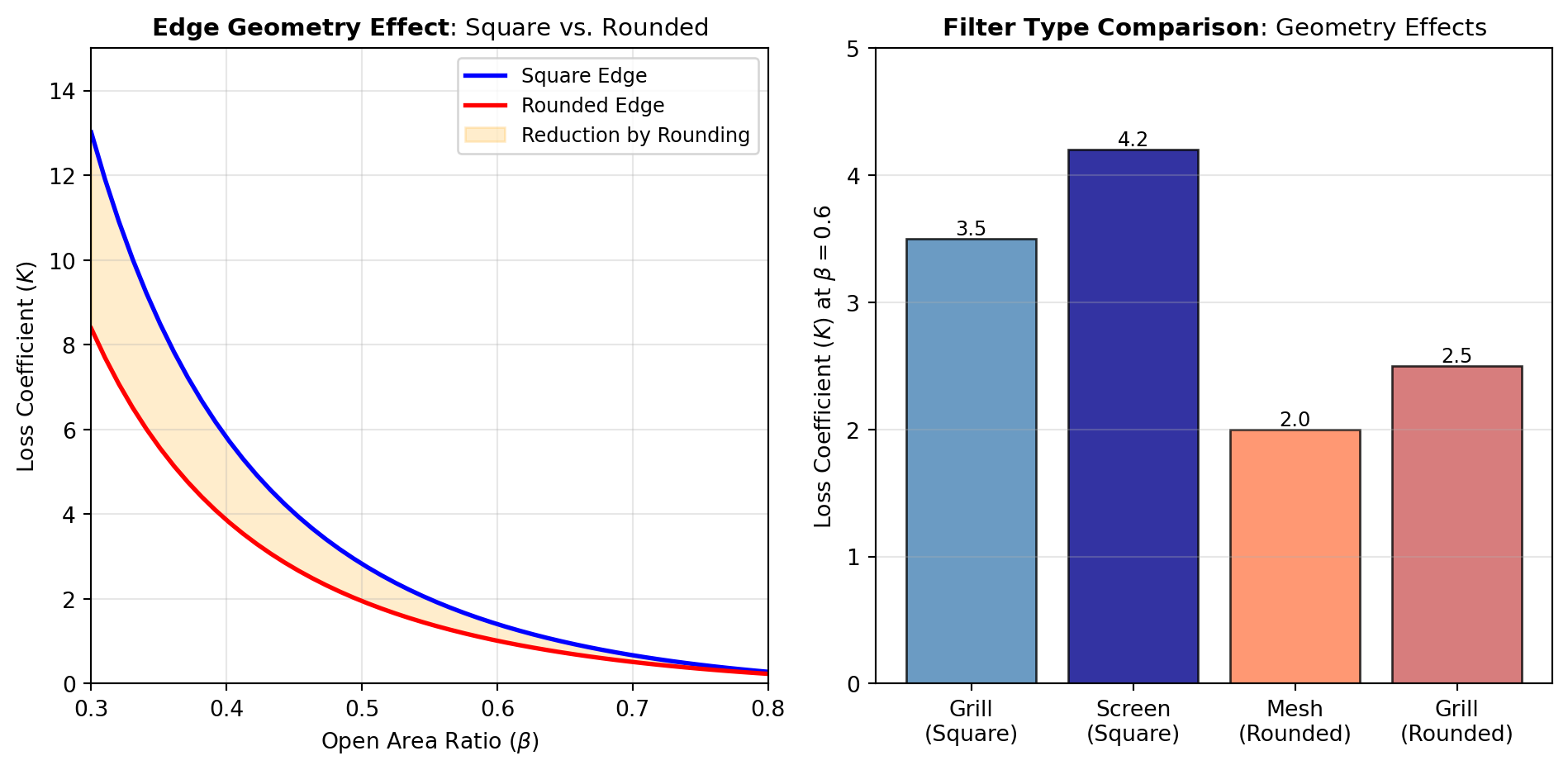

Figure 1: Filter Pressure Drop Characteristics: (A) Loss coefficient versus open area ratio for square-edged and rounded-edged grills, showing the significant reduction achieved by edge rounding. (B) Comparison of different filter types (grill, screen, mesh) at the same open area ratio, illustrating geometry-specific differences.

Tools

Tool	Description
RND_EDGE_GRILL	Calculate the loss coefficient for a rounded edge grill or perforated plate.
RND_EDGE_MESH	Calculate the loss coefficient for a round edged open net or screen mesh.
RND_EDGE_SCREEN	Calculate the loss coefficient for a round edged wire screen or bar screen.
SQ_EDGE_GRILL	Calculate the loss coefficient for a square edged grill or perforated plate.
SQ_EDGE_SCREEN	Calculate the loss coefficient for a square edged wire screen, bar screen, or perforated plate.
